Product Details:
Place of Origin: CHN
Brand Name: Precitec/WSX/Raytools/IPG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Single Packing
Delivery Time: 3 DAYS
Payment Terms: T/T, Western Union
Supply Ability: 100 PCS DAY
Detailed Product Description
Material: Metal Application: Laser Cutting Head
Cost: Low Cutting Accuracy: High
Cutting Edge Quality: Smooth Cutting Speed: High
Cutting Thickness: 0.2mm-20mm Durability: High
Environmental Protection: High Lifespan: Long
Maintenance: Low Noise: Low
Operating Temperature: Normal Power Consumption: Low
Safety: High
Highlight:

Precitec laser consumables

,

Protection Wiondow for Laser Cutting Head

,

Laser Optical Lens

Features

Protective Window For Laser Cutting Head

1.Standard high efficiency low loss anti-reflectance

2.Double-side AR coating process,High transmittance

3.High Purity Fused Silica,high temperature resistance

4.Longlife time,more durable

5.Total absorption less than 30PPM,Transmission above 99.8%

6.Applicable to laser cutting,laser welding,laser cladding system

Protection Wiondow for Laser Cutting Head 	Laser Optical Lens laser consumables 0









Description

Collimating Lens Focusing Lens For Precitec LightCutter Cutting Head











Ref.Number Cewoo Number Description
CEWOO LASER CL-PW00-07 Protection Window18*2
CEWOO LASER CL-PW00-08 Protection Window20*2
CEWOO LASER CL-PW00-09 Protection Window20*3
CEWOO LASER CL-PW00-10 Protection Window20*4
CEWOO LASER CL-PW00-11 Protection Window20*5
CEWOO LASER CL-PW00-12 Protection Window21.5*2
CEWOO LASER CL-PW00-12H Protection Window21.5*2(H)
P0589-360-00001 CL-PW00-13 Protection Window22.35*4
P0589-360-00001 CL-PW00-13H Protection Window22.35*4(H)
  CL-PW00-56 Protection Window23.8*4.1
211LCG0020 CL-PW00-53 Protection Window24.9*1.5
211LCG0020 CL-PW00-53H Protection Window24.9*1.5(H)
CEWOO LASER CL-PW00-54H Protection Window24.4*2(H)
  CL-PW00-14 Protection Window25*2(H)
CEWOO LASER CL-PW00-15 Protection Window25*3
CEWOO LASER CL-PW00-16 Protection Window25.4*3
CEWOO LASER CL-PW00-17 Protection Window25.4*4
CEWOO LASER CL-PW00-18 Protection Window25.4*5
CEWOO LASER CL-PW00-19 Protection Window26*4
964.100.004 CL-PW00-20 Protection Window26.6*5
211LCG0035 CL-PW00-21 Protection Window27.9*4.1
211LCG0035 CL-PW00-21H Protection Window27.9*4.1(H)
  CL-PW00-22H Protection Window28*4(H)
CEWOO LASER CL-PW00-24 Protection Window30*1.5
CEWOO LASER CL-PW00-24(H) Protection Window30*1.5(H)
CEWOO LASER CL-PW00-29H Protection Window32*2(H)
CEWOO LASER CL-PW00-31 Protection Window34*3
CEWOO LASER CL-PW00-34 Protection Window35*4
766719 CL-PW00-28 Protection Window30*5
766719 CL-PW00-28H Protection Window30*5(H)
CEWOO LASER CL-PW00-31 Protection Window34*3
1614767 CL-PW00-32 Protection Window34*5
1614767 CL-PW00-33 Protection Window34*5(H)
  CL-PW00-55 Protection Window35*4
  CL-PW00-57 Protection Window35.5*5
10045746 CL-PW00-37 Protection Window36*5
10045746 CL-PW00-37H Protection Window36*5(H)
  CL-PW00-53H Protection Window37*2(H)
P0595-56801/ 1102551AG0004 CL-PW00-38 Protection Window37*7 (<3.3KW)
CL-PW00-38H Protection Window37*7(H)(3.3KW-8KW)
CL-PW00-38HS Protection Window37*7(HS)(>12KW)
CEWOO LASER CL-PW00-39H Protection Window37*1.5(H)
211LCG0045 CL-PW00-40H Protection Window37*1.6(H)
CEWOO LASER CL-PW00-41 Protection Window38.1*1.5
CEWOO LASER CL-PW00-41H Protection Window38.1*1.5(H)
211LCG0076 CL-PW00-42 Protection Window38.1*1.6
211LCG0076 CL-PW00-42H Protection Window38.1*1.6(H)
  CL-PW00-44 Protection Window38*9.8
CEWOO LASER CL-PW00-45 Protection Window40*2
CEWOO LASER CL-PW00-46 Protection Window40*3
CEWOO LASER CL-PW00-47 Protection Window40*5
CEWOO LASER CL-PW00-47H Protection Window40*5(H)
P0251-1070-00001 CL-PW00-50 Protection Window50*2
P0251-1070-00001 CL-PW00-50H Protection Window50*2(H)
759720 CL-PW00-52 Protection Window55*1.5
759720 CL-PW00-52H Protection Window55*1.5(H)

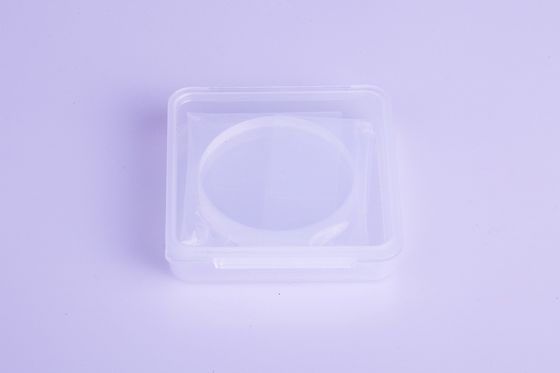

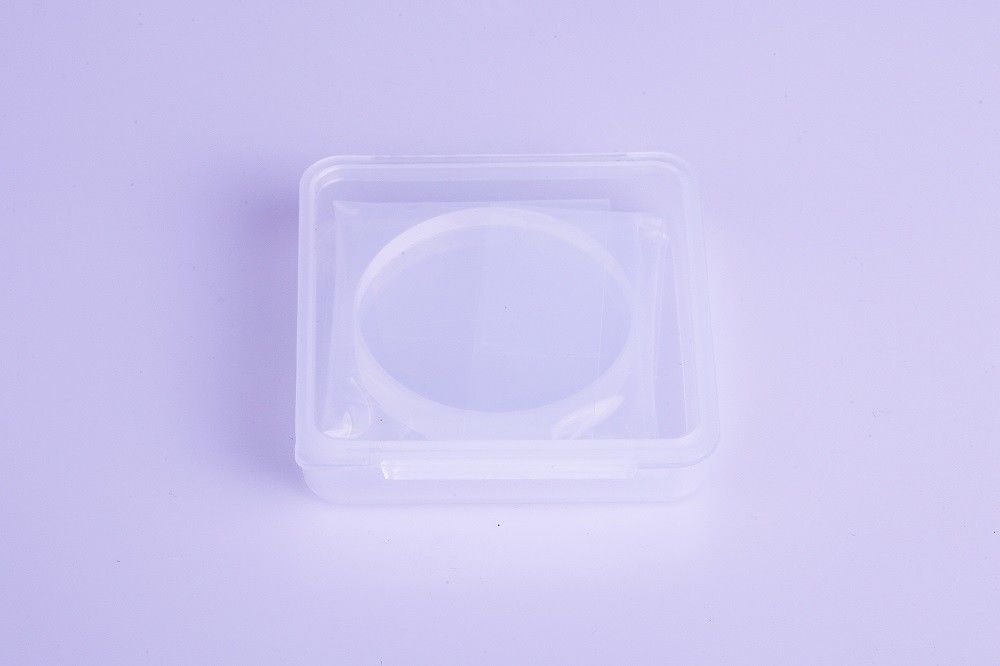

Packaging

1. Transparent plastic packaging, one packaing hold one pcs nozzle, more safe and flexible sales.

2. All products inspected before delivery.

3.Safe and clear storage allow faster delivery.

Protection Wiondow for Laser Cutting Head 	Laser Optical Lens laser consumables 1















Protection Wiondow for Laser Cutting Head 	Laser Optical Lens laser consumables 2

Lens Lens Production




Protection Wiondow for Laser Cutting Head 	Laser Optical Lens laser consumables 3

Inspection


How to Choose Lens

Protection Wiondow for Laser Cutting Head 	Laser Optical Lens laser consumables 4







More Technical Support

Protection Wiondow for Laser Cutting Head 	Laser Optical Lens laser consumables 5

More Laser Technical Questions Please Feel Free To Contact!
